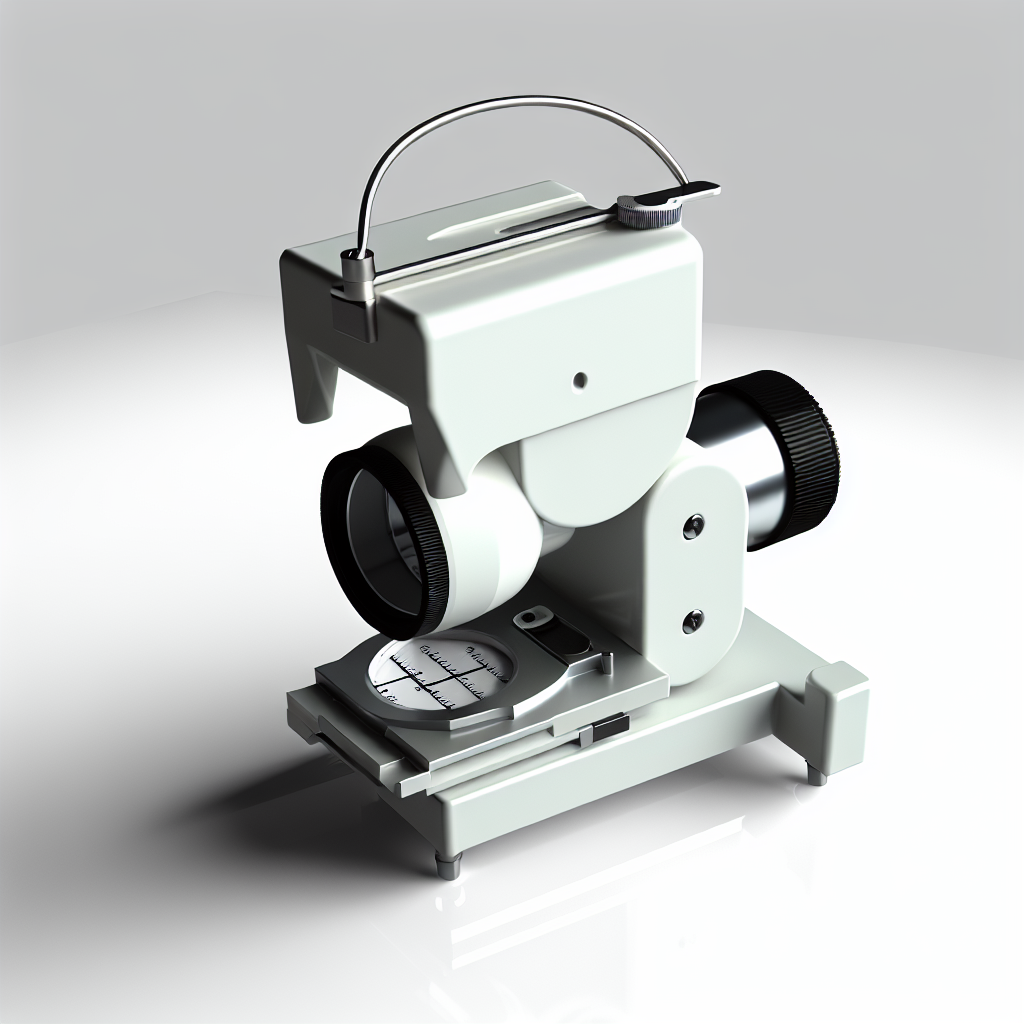

MicroVector Precision Alignment System (MPAS-12)

Description

The MicroVector Precision Alignment System (MPAS-12) is a revolutionary alignment and positioning instrument engineered specifically for electronics assembly, optics calibration, and micro-mechanical fabrication. Utilizing a proprietary tri-axis piezoelectric actuator array combined with real-time interferometric feedback, the MPAS-12 achieves positioning accuracies down to 5 nanometers with repeatability under 10 nanometers. The integrated closed-loop control system employs adaptive algorithms to compensate for thermal drift, mechanical vibration, and load variations, ensuring stable operation in demanding industrial environments.

The MPAS-12 features a modular interface compatible with standard XYZ stages, CNC systems, and robotic arms, allowing seamless integration into existing production lines or research testbeds. Its high-speed data acquisition system supports alignment updates at 5 kHz, enabling dynamic correction during high-throughput processes. The compact, ruggedized chassis incorporates active vibration isolation pads and a low-noise linear encoder network, while an intuitive touchscreen GUI offers advanced calibration routines, scripting capabilities, and remote diagnostics via Ethernet and USB-C.

Ideal for precision optoelectronics assembly, semiconductor wafer alignment, fiber optic coupling, and nanoscale mechanical positioning, the MPAS-12 sets a new benchmark for precision toolmakers and professionals requiring ultimate control at the micro- and nano-scale. Technical specifications include a 12 mm cube travel range per axis, operating temperature range from 15°C to 40°C, and a system latency below 0.2 ms. The MPAS-12 is powered by a high-efficiency linear power supply with integrated surge protection, ensuring reliability in sensitive instrumentation environments.
