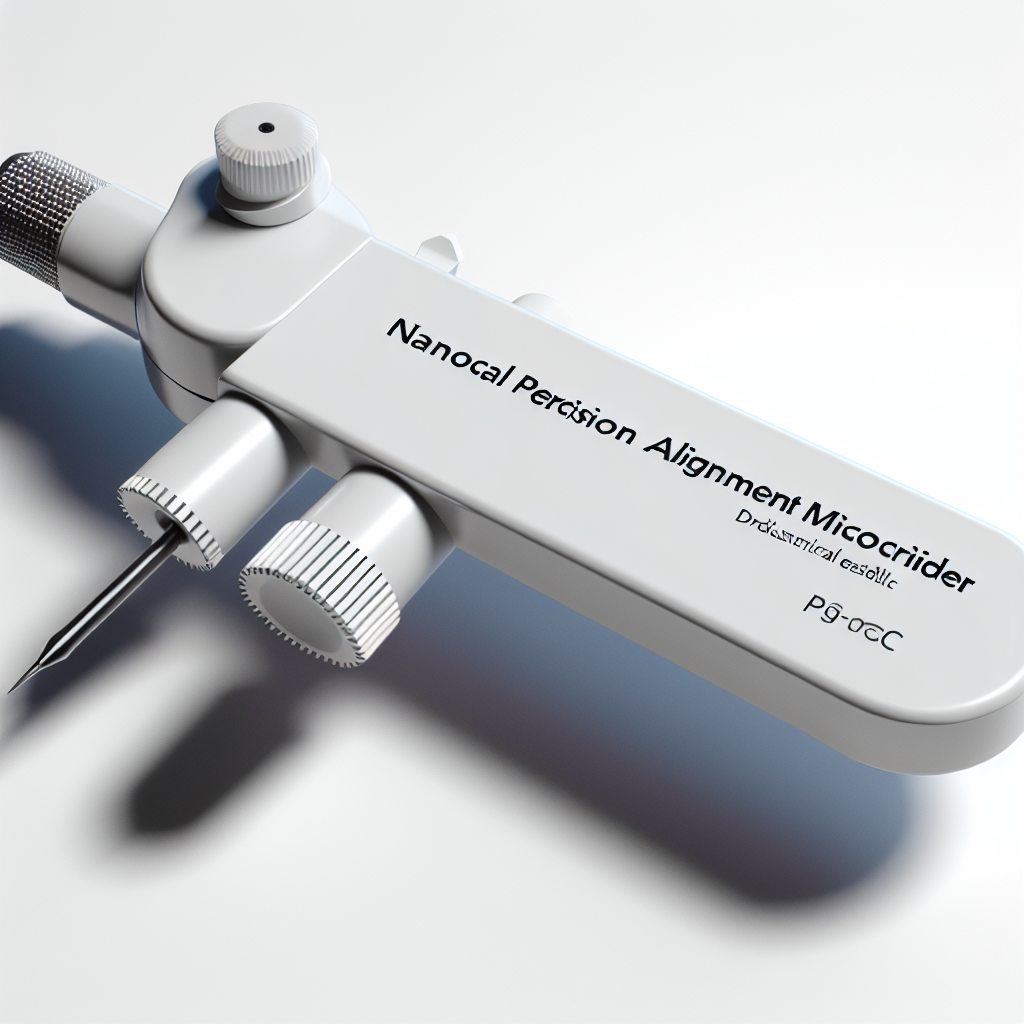

NanoCal Precision Alignment Microscriber

Description

The NanoCal Precision Alignment Microscriber introduces a revolutionary advancement in micro-manufacturing and electronics prototyping tools. Designed specifically for engineers, technicians, and high-end makers working at nanometer scales, the NanoCal combines ultra-precise nanopositioning with advanced force-feedback engraving capabilities. Utilizing proprietary piezoelectric linear motor arrays and a closed-loop interferometry positioning system, the Microscriber achieves repositioning repeatability of ±10 nanometers over a 10 mm travel range. Its diamond-coated micro-tip, interchangeable with a modular cartridge system, enables fine line scoring, circuit pattern adjustments, and stress-relief micro-notches on substrates as delicate as flexible glass and monocrystalline silicon wafers. Integrated tactile sensors measure applied force in real-time, preventing substrate damage or tip wear during intricate procedures. The device is housed in a lightweight but durable magnesium-aluminum alloy frame, optimized for handheld or bench-mounted use, with an intuitive touch-based UI displaying live position readouts, angle adjustments, and pressure mapping. Connectivity is provided via USB-C and Bluetooth 5.2 for integration with CAD/CAM and lithography control software. With configurable scripting capabilities and an open API, NanoCal is ideal for research labs, semiconductor R&D, and precision mechanical assembly industries seeking unparalleled control in micro-patterning tasks.
