Description

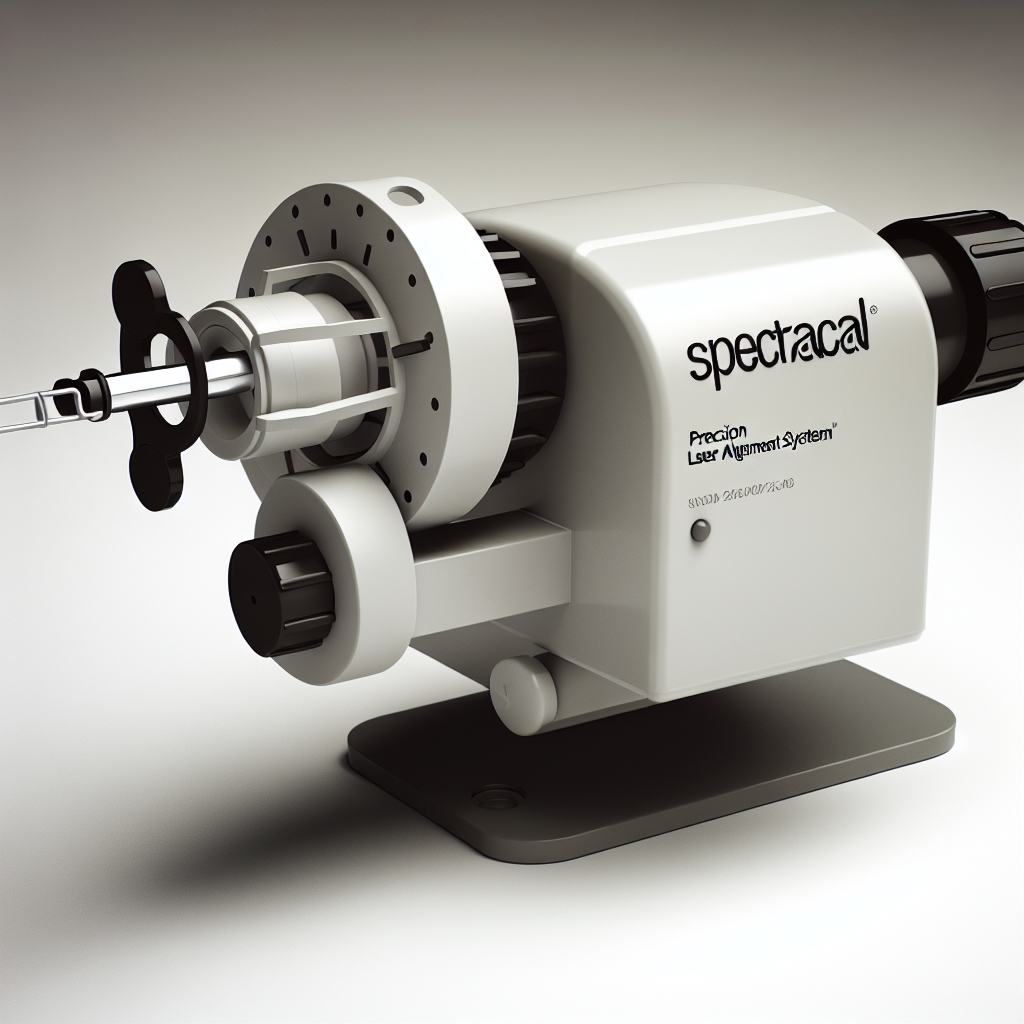

The SpectraCal Precision Laser Alignment System redefines alignment accuracy for professionals across engineering, manufacturing, and advanced fabrication fields. Utilizing a patent-pending multi-wavelength adaptive laser array combined with real-time interferometric feedback, SpectraCal achieves sub-micron alignment precision over distances up to 5 meters. Designed for use in cleanrooms, optical labs, and precision mechanical workshops, this system enables rapid and repeatable calibration of complex assemblies such as lens stacks, machine shafts, and multi-axis robotic joints.
Key Features:
– Multi-wavelength adaptive laser array emitting stable beams at 450nm, 532nm, and 650nm to enhance visibility on various surfaces without marking or contact.
– Embedded high-speed interferometric sensor module for continuous deviation tracking down to 0.2 microns.
– Robust industrial-grade aluminum chassis with vibration-damping mounts ensuring measurement stability in operational environments.
– Integrated touchscreen interface offering live 3D alignment visualization and step-by-step guided calibration routines.
– USB-C and Ethernet connectivity with proprietary SpectraSync® software allowing data logging, remote control, and integration with CNC or robotic alignment systems.
Technical Specifications:
– Laser wavelengths: 450 nm (blue), 532 nm (green), 650 nm (red)
– Alignment accuracy: ±0.2 microns
– Max effective range: 5 meters
– Sensor refresh rate: 5000 Hz
– Power input: 24V DC, 60W
– Operating environment: 15 to 35°C, non-condensing
The SpectraCal system is engineered for precision technicians requiring unmatched control and confidence in alignment tasks where traditional mechanical gauges and single-wavelength lasers fall short. Whether setting up optical benches, calibrating robotic end-effectors, or tuning CNC spindles, SpectraCal delivers the clarity and exactitude demanded in today’s high-performance environments.
